LiFePo4 Prismatic Battery Cells

  • 3.2V 100Ah-A
3.2V 100Ah-A

3.2V 100Ah-A

  • 3.2V 100Ah
  • LiFePo4 Chemistry
  • Prismatic Shape
  • 5C peak current
  • Product description:
  • INQUIRY

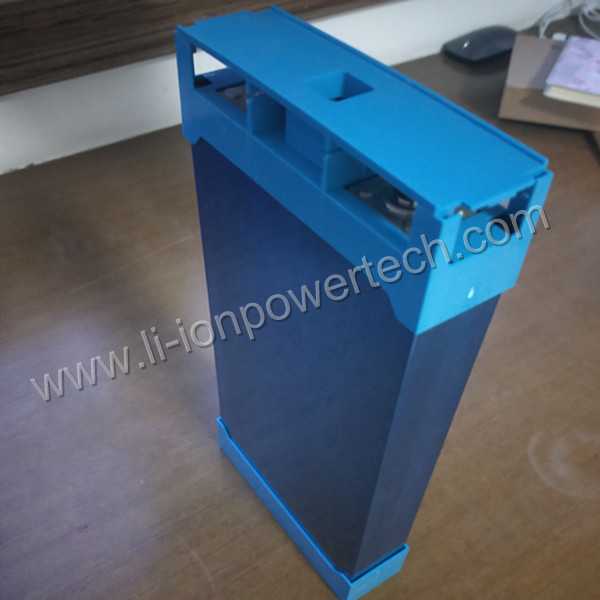

6000 Life Cycles LiFePo4 100Ah Battery Cell


Typical Capacity: 102Ah

Minimum Capacity: 100Ah

Internal Impedance: 0.5

Nominal Voltage: 3.2V

Cell Size: 36*130*290mm

Cell Weigh: ≤3kgs

End-of-charge Voltage: 3.65V

End-of-discharge Voltage: 2.2V

Charge Method: 0.5C CC/CV

Max Pulse Discharge current: 500A (5S)

Max Continuous Discharge current: 200A

Max Pulse charge current: 100A(10S)

Standard charge current: 50A

Life Cycles: 4000~5000

Warranty: 5 years
