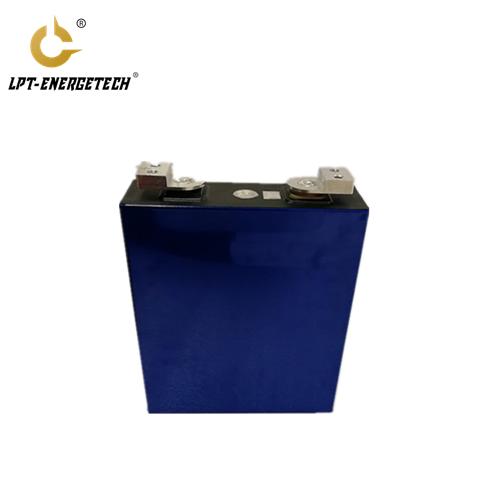

3.2V 206Ah -A

Item

Specification

Dimension (Welding terminal)

53.9mm x174.6mm x207.1mm

Dimension (Screw terminal)

53.9mm x174.6mm x217.1mm

Weight

Max.4200g

Min. capacity

206Ah (0.5C) @ 25°C

Min. energy

663Wh (0.5C) @ 25°C

SOC window

0- 100 %

Terminal

Welding/Screw terminal

Voltage

Max.

3.65 V

Nominal

3.22 V

Min.

2.00V

Energy density

Gravimetric

161Wh/kg

Volumetric

355Wh/L

Temp. Condition

Operation (Charge)

0〜55°C

Operation (Discharge)

-20〜55°C

Storage

-30〜55°C

Self-Discharge Rate

Count after fresh cell need Standard Charge to 50%SOC and storage at 25±2°C for 3 month

<3%

Cycle Life

1C/1C, 80% DOD 25°C

3,000 cycles

1C/1C, 80% DOD 45°C

1,000 cycles

Service Life

25°C average temperature

5years/200000Km

Calendar Life

SOC 50%, 25°C

On going (10yrs est.)

Abuse test

overcharge, over-discharge, Short, Heat

GB/T 31485-2015
